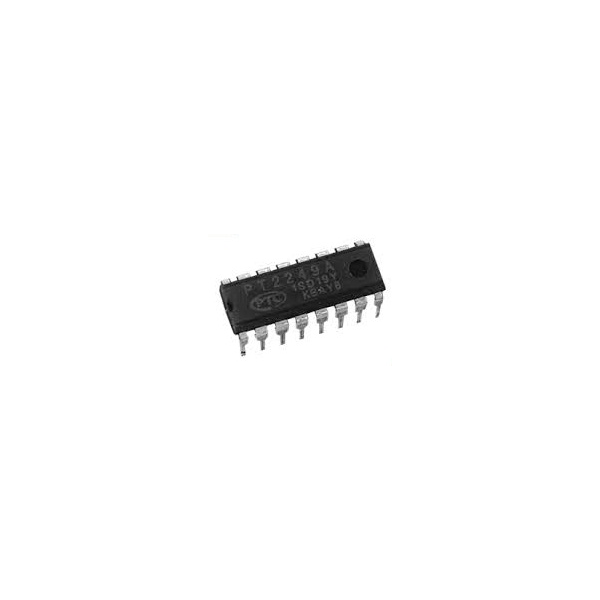

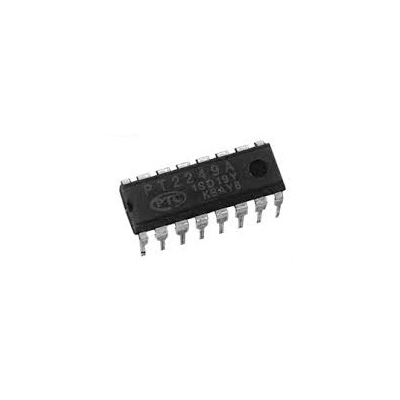

PT2249 ای سی گیرنده ریموت کنترلر 10 کانال

تخفیف ویژه

Description

The PT2249A / PT2250A Series are infra-red remote control receivers utilizing CMOS Technology. Remote Control System can be constructed together with the PT2248 remote control encoder. The PT2249A Series are packaged in 16 pins DIP and are capable of controlling 10 functions while the PT2250A Series are packaged in 24 pins DIP and are capable of controlling 18 functions. Several options, inverting/non-inverting IR signal input and/or dependent/independent cyclic (toggle) outputs, are provided to fit different application needs.

Features

 CMOS Technology

Low Power Consumption

 Very High Noise Immunity

Able to output parallel multiple keying signals sent from the transmitter (PT2249A is able to output up to 5 functions simultaneously while PT2250A is able to output up to 6 functions simultaneously)

Outputs for single pulse, hold pulse and cyclic pulse are provided

 A single terminal type oscillator by means of RC is provided

Code Detection Circuit prevents interference from various types of machines and apparatus

Digital Filtering and Code Checking prevent interference from light sources such as PL Lamp without sacrificing the receiving sensitivity

Applications

Audio Equipment Remote Control

Television (TV) Remote Control

Video Cassette Recorder (VCR) Remote Control

دانلود دیتاشیت :

http://www.alldatasheet.com/datasheet-pdf/pdf/35112/PTC/PT2249A.html
